HIMIWAY – A3
Original price was: $1,699.00.$1,499.00Current price is: $1,499.00.

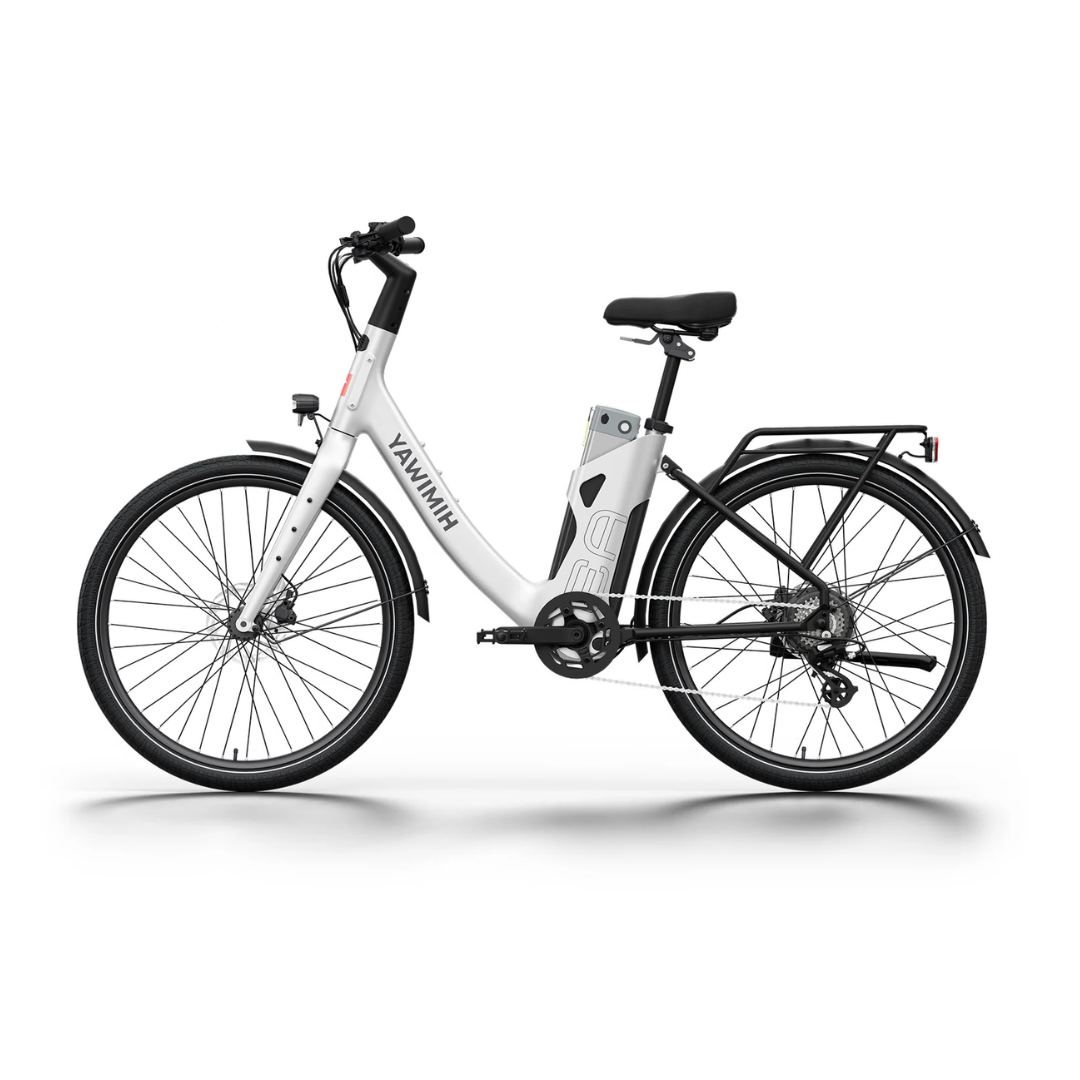

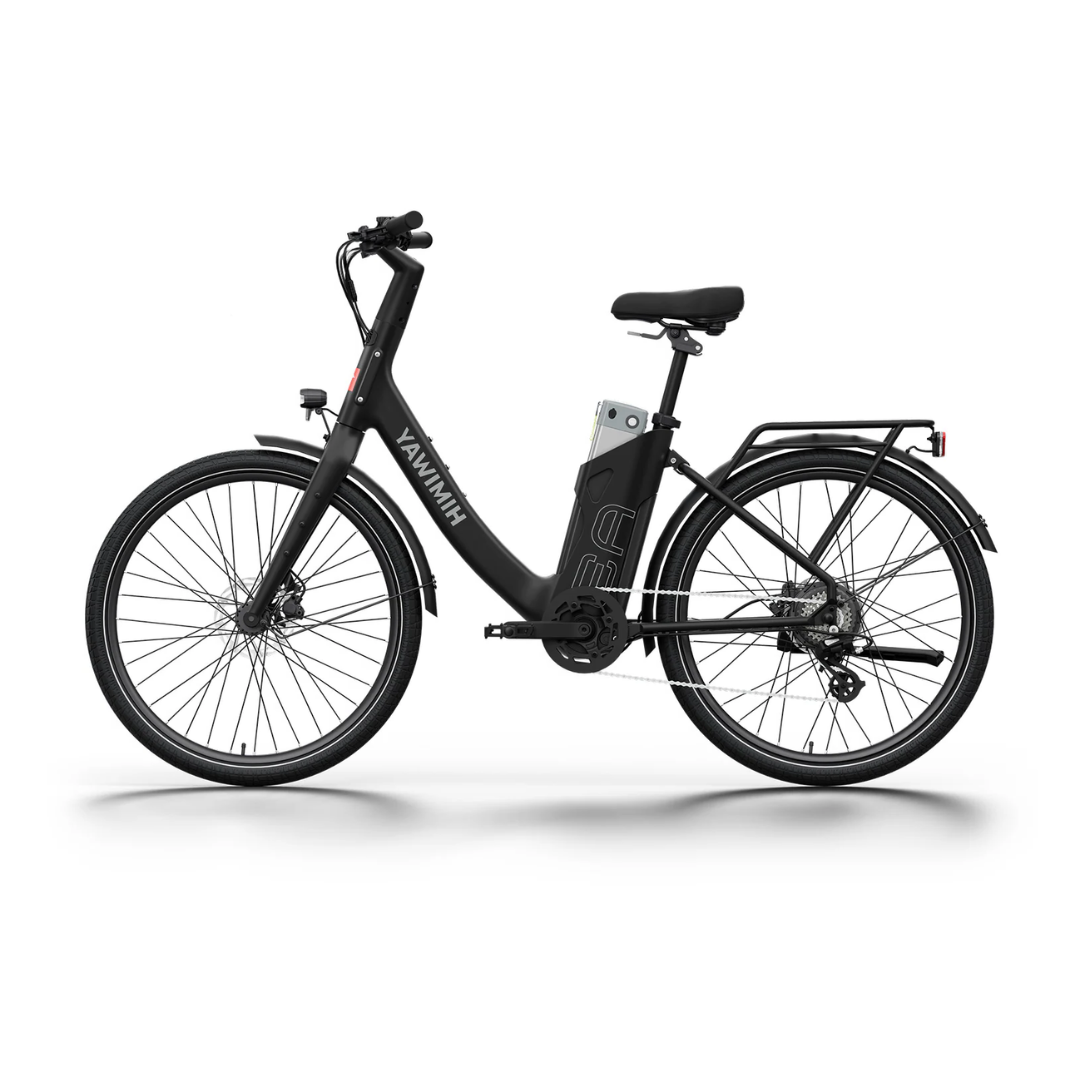

Himiway A3 | Urban Electric Commuter Bike
Perfect for Commuting
Specification
-
FrameFront: 6061 aluminum Rear:A356 Steel
-
HeadsetNeco A16M 44*44*30
-
Fork6061 aluminum 100*12mm thru axle, rack mounts, fender mounts, post disc mount
-
Front wheelRim: 26″”*1.75*36H*13G A/V | Spoke: 13G*257.5MM/259.5MM | Hub: R303F-12 12g*36H 12*100mm
-
Rear wheelRim: 26″”*1.75*36H*13G A/V | Spoke: 13G*225.5MM/226.5MM | Hub: 48v 500w Himiway Hub Motor
-
TiresInnova IA-2128 26*2.2 25-60PSI
-
Battery48V15AH LG 21700 IP65 720Wh
-
Motor500w Himiway brushless gear motor
-
DisplayHimiway LED Display
-
ThrottleThumb throttle
-
SensorsTorque sensor丨speed sensor丨brake sensor
-
CranksetCrank arm:J6061-T6 170mm | Chain ring: 38T narrow wide steel chainring BCD104
-
FreewheelShimano MF-TZ500-7 14-28T
-
ChainKMC Z8.3 EPT 112L
-
GroupsetShimano altus M310 7 speed
-
Front brakeTektro HD-E3520 hydraulic brake
-
Rear brakeTektro HD-E3520 hydraulic brake
-
RotorsF:160mm R:160mm
Components
-
HandlebarHimiway integrated handlebar-Stem 680mm width*90mm stem
-
SeatpostHimiway flip seatpost 27.2*300
-
SaddleTTZ032X
-
PedalAluminum pedal
-
Lights48V LED light
-
KickstandAdjustable aluminum kickstand
Others
-
Range70 miles
-
Controller48V/18A
-
ChargerUS standard 2.0 A smart charger
-
Rider height5’1″~6′
-
Weight68.3 lb.
-
Max payload capacity300 lb.
-
Geometry
Recommended Height: 5’1″~6′
-
A – total length70.6
-
B – handlebar height45.3
-
C – wheelbase43.8
-
D – minimum seat height24
-
E – maximum seat height31.8
-
F – chain stay length18.3
-
G – frame stack23.5
-
H – effective top tube length21.1
-
I – wheel diameter26.2
-
J – head tube length8.5
-
K – handlebar length26.7
-
L – frame reach16.4
-
M – head angle69°
-
N – standover height24.6
-
| Weight | 200 lbs |
|---|---|
| Colour | Black, Indigo, White |
